pho1668124
PHOENIX 1668124 4-Position Sensor Cable 22 AWG M12 Straight RAL 7021 Black Gray 5 m L
pho1668124
PHOENIX 1668124 4-Position Sensor Cable 22 AWG M12 Straight RAL 7021 Black Gray 5 m L
Price
$27.81
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:PHOENIX
Manufacturer #:1668124
Description

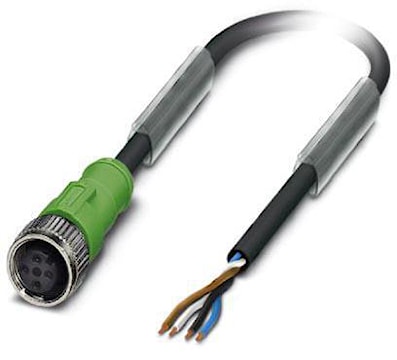

Sensor/actuator cable SAC-4P-5.0-PUR/M12FS. 4-wires twisted. 4-position, PUR halogen-free, black/grey RAL 7021, free cable end, on socket straight M12, A-coded. Contains brown, white, blue, black wires. Easy and safe 100% electrically tested plug-in components.
Specifications
| Brand Name | Phoenix | Item Name | Sensor Cable |
| Type | 4-Position | Voltage Rating | 250 VAC/VDC |
| Cable Length | 5 m | Connector Type | M12 Straight |
| Material | Bare Copper Conductor | Amperage Rating | 4 A |
| Cable Diameter | 4.2 +/- 0.15 mm | Cable Material | Polyurethane |
| Number of Conductors | 4 | Wire Gauge | 22 AWG |
| Bend Radius | 42 mm | Housing Material | Polyurethane |
| Color | RAL 7021 Black Gray | Degree of Protection | IP65, IP67, IP68 |
| Temperature Rating | -25 to 90 °C | Standards | UL Listed, IEC 61076-2-101, RoHS Compliant |
