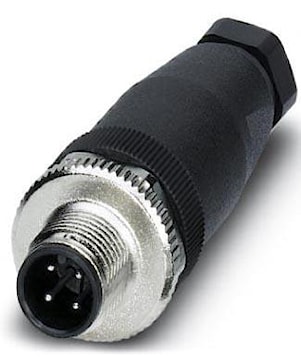

PHOENIX 1662528 Connector Plug with PG7 Cable Gland M12, 4-Pin 4 P, Straight Male
pho1662528
PHOENIX 1662528 Connector Plug with PG7 Cable Gland M12, 4-Pin 4 P, Straight Male
Price
$21.75
/ EA
Inventory
Unavailable for order
Manufacturer:PHOENIX
Manufacturer #:1662528
Description
Connector SACC-M12MS-4CON-PG 7-M. 0.25 to 0.75 mm² cross section. Screw connection. Copper zinc contact, polyamide contact carrier, NBR seal, zinc die-cast, nickel plated knurls material. Safe use in the field, a high degree of protection. Flexible: connectors for on-site assembly. Screw connection: proven connection technology for a large selection of different conductors.
Specifications
| Brand Name | Phoenix | Item Name | Connector Plug with PG7 Cable Gland |
| Type | M12, 4-Pin | Voltage Rating | 250 V |
| Mounting | Cable | Material | Die-Cast Zinc Body, Polyamide Contact |
| Amperage Rating | 4 A | Connection | Straight Male |
| Cable Size | 24-18 AWG without Ferrule, 26-20 AWG with Ferrule | Number of Poles | 4 |
| Color | Black Handle | Finish | Nickel Plated |
| Size | 20 mm dia Housing, 60 mm L, 4 - 6 mm dia External Cable | Temperature Rating | -40 to 85 °C Ambient |
| Degree of Protection | IP67 | Standards | UL, cUL, cULus, cURus Listed, EAC Certified, RoHS Compliant |
