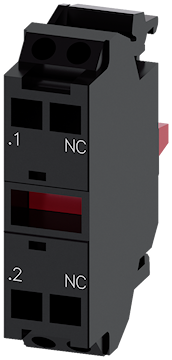

SIEMENS 3SU14001AA103CA0 Sirius Contact Block 1 NC 22 mm Size Front Plate Mount Spring-Loaded Terminal

Price $14.40 / EA
Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:SIEMENS
Manufacturer #:3SU14001AA103CA0
Documents Documents

Description

SIRIUS ACT Contact module with 1 contact element. Spring-loaded terminal. Front plate mounting.

Specifications

Brand Name Siemens Sub Brand Sirius
Item Name Contact Block Voltage Rating 5 - 500 V
Contact Configuration 1 NC Contact Rating 6 A at 230 VAC
Number of Poles 1 Size 22 mm
Amperage Rating 10 A Conductor Size (2) 24-16 AWG Solid
NEMA Rating NEMA A600, R300 Enclosure Standard IP40/IP20
Terminal Type Spring-Loaded Mounting Type Front Plate
Material Silver Alloy Dimensions 9.8 mm W x 23.4 mm D x 36 mm H
For Use With 3SU1 Series Push Buttons and Indicator Lights Standards UL Listed, CSA, EAC, CCC, CE Certified
Application For Control Station UPC 804766073298
