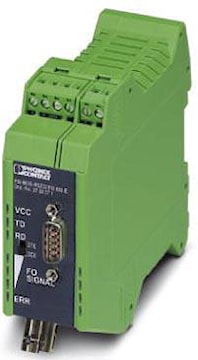

PHOENIX 2708371 Fiber Optic Converter 60 VDC/42 VAC

Price $1,642.50 / EA
Unavailable for order
Manufacturer #:2708371


FO converters PSI-MOS-RS232/FO-850-E. With integrated optical diagnosis. Alarm contact. Terminal equipment with an FO interface. For HCS/fiber glass cable. Connections can be plugged in using a COMBICON screw terminal block. Supply voltage and data signals routed through via DIN rail connectors. Redundant power supply possible by means of optional system power supply unit. Intrinsically safe fiber optic interface for direct connection to devices in zone-1. Integrated optical diagnostics for continuous monitoring of fiber optic paths. Floating switch contact for leading alarm generation in relation to critical fiber optic paths. Automatic data rate detection for all data rates up to 115.2 kbps.


Brand Name Phoenix Item Name Fiber Optic Converter
Output Type Relay Input Voltage 24 VDC
Output Voltage 60 VDC/42 VAC Input Current 120 mA
Output Current 0.46 A Connection Type D-Sub 9-Plug
Mounting Type DIN Rail Temperature Rating -20 to 60 °C
Specifications RS-232 Interface Material Polyamide 6.6
Color Green Dimensions 35 mm W x 105 mm D x 99 mm H
Standards UL Listed, CE Certified, cUL Listed, ATEX Certified, REACH SVHC Lead 7439-92-1, China RoHS Compliant
