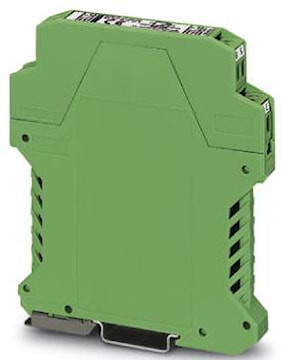

PHOENIX 2814469 Signal Conditioner 3-Way Isolating 15 V
pho2814469
PHOENIX 2814469 Signal Conditioner 3-Way Isolating 15 V
Price
$719.28
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:PHOENIX
Manufacturer #:2814469
Description
MCR 3-way isolating amplifier for electrical isolation of analog signals. 0 to 10 V or (+/-) 10 V. 0 to 10 V or (+/-) 10 V output signal. Pluggable screw connection method. 24 to 14 AWG. Polyamide PA, non-reinforced housing. Ambient temperature -10 to 70°C. IP20 degree of protection.
Specifications
| Brand Name | Phoenix | Item Name | Signal Conditioner |
| Type | 3-Way Isolating | Input Type | Voltage |
| Output Type | Voltage | Input Voltage | 30 V |
| Output Voltage | 15 V | Series | MCR |
| Input Current | < 15 mA | Connection Type | Pluggable Screw |
| Mounting Type | DIN Rail | Temperature Rating | -25 to 60 °C |
| Response Time | 11 Millisecond | Specifications | 30 Hz Limit Frequency |
| Material | Polyamide | Color | Green |
| Dimensions | 12.5 mm W x 114.5 mm D x 99 mm H | Standards | UL Listed, CE Certified, cUL Listed, ATEX Certified, REACH SVHC Lead 7439-92-1, China RoHS Compliant |
