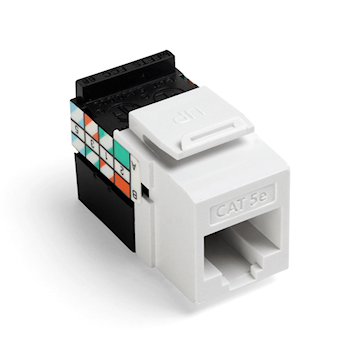

LEVITON 5G108-RW5 GigaMax®, QuickPort Cat 5e Cable Connector RJ-45, Permanently Laser-Engraved, Fire-Retardant 8 Positions
lev5g108rw5
LEVITON 5G108-RW5 GigaMax®, QuickPort Cat 5e Cable Connector RJ-45, Permanently Laser-Engraved, Fire-Retardant 8 Positions
Price
$8.06
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEVITON
Manufacturer #:5G108-RW5
Description
Category 5 Connector shall meet or exceed the requirements for Category 5e described in the ANSI/TIA-568-C.2 specifications. The connector shall have the ability to support high megabit and shared-sheath applications, The connector shall provide a ledge directly adjacent to the 110-style termination against which the wires can be directly terminated and cut in one action by the installer. Individual port configurability allows specification flexibility, Robust one-piece lead-frame design.
Specifications
| Brand Name | Leviton | Sub Brand | GigaMax®, QuickPort |
| Item Name | Cat 5e Cable Connector | Type | RJ-45, Permanently Laser-Engraved, Fire-Retardant |
| Cable Type | Category 5E | Number of Positions | 8 |
| Termination Style | 110 | Color | White |
| Number of Contacts | 8 | Material | Phosphor Bronze |
| Mounting Type | Wallplate, Panel | Dimensions | 0.64 in W x 1.17 in D x 0.89 in H |
| Environmental Conditions | UL 94 Requirements, V0 Rated Flammability | For Use With | Round Cable |
| Standards | ANSI/TIA-568-C.2, cULus Listed, TIA-1096-A, CSA Certified | Application | Commercial |
| UPC | 078477170328 |
