LEGRAND WP3473WH Telephone Keystone Insert RJ25 6 Positions
onqwp3473wh
LEGRAND WP3473WH Telephone Keystone Insert RJ25 6 Positions
Inventory
Unavailable for order
Manufacturer:LEGRAND
Manufacturer #:WP3473WH
Description

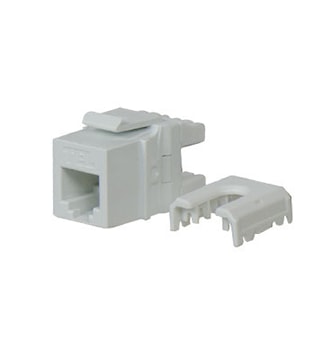

ON-Q® Telephone Keystone insert with 6-position and 6-conductor termination. It is made of high impact flame retardant plastic. Insert supports up to three telephone lines and accepts an RJ45 plug without damage. It has 50 micro inch of gold on contacts. QuickConnect termination for reduced installation time. The operating temperature is -10 to 60°C. UL 94V-0 flammability rating.
Specifications
| Brand Name | On-Q | Sub Brand | On-Q |
| Item Name | Telephone Keystone Insert | Type | RJ25 |
| Cable Type | Category 3 | Number of Positions | 6 |
| Termination Style | 6P6C | Color | White |
| Number of Contacts | 6 | Material | High Impact Flame Retardant Plastic |
| Temperature Rating | -10 to 60 °C | Dimensions | 0.7 in L x 4 in W x 6 in H |
| Environmental Conditions | UL 94 Requirements, V0 Rated Flammability | Standards | CSA Certified, cULus and UL Listed, RoHS Compliant, ANSI/UL 1863 |
| Application | For Round and Flat Solid Core Cable | UPC | 804428008521 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 |
