rit3237110

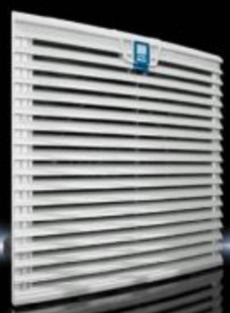

RITTAL 3237110 FAN UNIT SK 115V25M/H 105X5
rit3237110
RITTAL 3237110 FAN UNIT SK 115V25M/H 105X5
Inventory
Unavailable for order
Manufacturer:RITTAL
Manufacturer #:3237110
Description
TopTherm fan and filter unit cooling with ambient air.
Specifications
| Brand Name | Rittal | Item Name | Top Thermal Fan and Filter Unit |
| Type | Filter Fan Unit | Flow Rate | 11.8 ft³/min at 50 Hz, 14.7 ft³/min at 60 Hz |
| Housing Material | Polyester | Power Rating | 11 W at 50 Hz, 9 W at 60 Hz |
| Voltage Rating | 115 VAC | Amperage Rating | 0.1 A at 60 Hz, 0.12 A at 50 Hz |
| Frequency Rating | 50/60 Hz | Motor Type | AC Motor |
| Sound Level | 38 dB at 50 Hz, 43 dB at 60 Hz | Color/Finish | RAL 7035 Light Gray |
| Overall Height | 4.6 in | Standards | UL 20130211-E76083, CSA C22.2 No. 14, CAN/CSA C22.2 No. 94, UL508A, UL Listed, cUL Listed, NEMA 3, NEMA 3R, NEMA 12, IP54, IP56 |
| Application | For Climate Control Solutions | UPC | 639889858237 |
Packages
| 1 - rarr_unit_1 |
