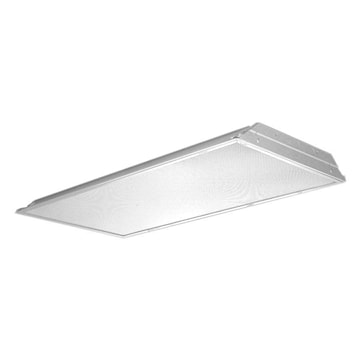

2x4 Day-Brite Fluorescent Recessed Troffer 32W Non-Dimmable

Price $122.29 / EA
Available for delivery
Unavailable for pick up Ajax
Qty EA
Manufacturer #:2TG843201UNV14EB


TG8 Lensed Troffer is a quality low-profile recessed luminaire with specification features. It is designed around T8 lamps and electronic ballasts. Shallow body minimizes required plenum clearance. Smooth rolled edges on housing and door frame for easy handling. Opposable spring loaded stainless steel latches standard for easy opening and closing. Available in 2x2 and 2x4 models. 2 sets of built-in grid clips for maximum flexibility. T-bar screw provisions built in. Lamp pin openings in ends for easier relamping. Door frames feature true mitered corners. Mechanical light trap stops light leaks without the use of gasketing. High optical efficiency for improved performance and energy savings. Housing is multi-stage phosphate treated for maximum corrosion resistance and finish coat is high reflectance baked white enamel. UL listed for damp locations. Units incorporating emergency ballasts UL listed for dry locations.


Brand Name Day-Brite CFI Item Name Troffer
Type Low Profile, Flanged Voltage Rating 120 - 277 V
Lamp Type T8 Fluorescent Number of Lamps 4
Housing Finish White Lamp Wattage 32 W
Color Temperature 3500 K Color Rendering Index (CRI) 70
Ballast Type (1) 4-Lamp Electronic Lens Type #12 Pattern Prismatic Acrylic
Mounting Type Ceiling Housing Material Flat Steel
Dimensions 4 ft L x 2 ft W x 3-3/16 in H Standards cULus Listed
Application For Damp Location UPC 734340976595
