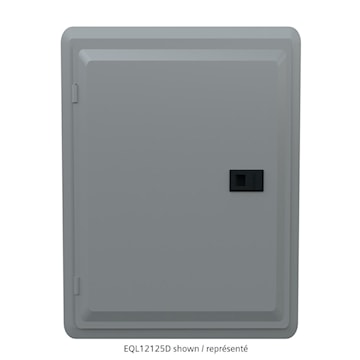

SIEMENS EQL24125D Loadcentres Single Phase Main Lug Load Centers EQL, Lockable 125 A, 1 PH, 240 VAC, Type 1 Indoor Steel Housing

Price $284.84 / EA
Available for delivery
Available for pick up at Ajax
Qty EA
Manufacturer #:EQL24125D


Loadcenters are classified into 4 types EQL (1 phase main lug distribution no main), SEQ (1 phase with main breaker), EQ4 (3 phase with main breaker) and EQD(generator suuply) consists of the enclosure, the interior and the trim. Available in version 120/240vac 60/200A-40/80 circuits or 120/208vac 100/225A-12/42 circuits all type eemac 1 interior or 3R outdoor. Made of cold rolled gauge steel finished with gray paint, they are certified listed CSA.


Brand Name Siemens Sub Brand Loadcentres
Item Name Single Phase Main Lug Load Centers Type EQL, Lockable
Number of Circuits 24 Number of Spaces 24S/48S
Voltage Rating 240 VAC Amperage Rating 125 A
Interrupt Rating 10 kA Phase 1
Mounting Type Combination Flush/Surface Enclosure Type Type 1 Indoor
Size 24.1x13x3.8 in HxWxD in Breaker/Load Center Type Miniature/Earth Leakage
Bus Rating 125 A Wiring Configuration 3 Wire
Conductor Size 4-2/0 AWG Frequency Rating 60 Hz
Construction Steel Housing Finish Gray
Dimensions 331 mm W x 95 mm D x 613 mm H Includes Door
Application For Residential UPC 662862003515


1 - rarr_unit_1 36 - rarr_unit_2
