sie6ep13311sh03

SIEMENS 6EP13311SH03 LOGO Power DC Power Supply Stabilized, Single Phase 0 - 100 VAC at 50 Hz, 0 - 240 VAC at 60 Hz, 110 - 300 VDC Input, 0 - 24 VDC Output, 1.3 A,

Inventory
Unavailable for order
Manufacturer:SIEMENS
Manufacturer #:6EP13311SH03

Description

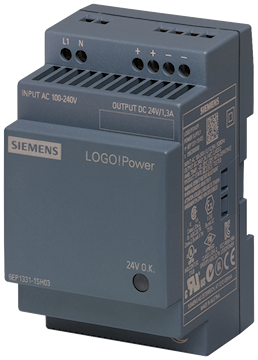

LOGO POWER Stabilized power supply. Controlled, isolated DC voltage output. Green LED for output voltage. Screw-type terminals connection.

Specifications

Brand Name Siemens Sub Brand LOGO Power
Item Name DC Power Supply Type Stabilized, Single Phase
Input Voltage 0 - 100 VAC at 50 Hz, 0 - 240 VAC at 60 Hz, 110 - 300 VDC Output Voltage 0 - 24 VDC
Power Rating 30 W NEMA Configuration IP20
Amperage Rating 1.3 A Frequency Rating 47 - 63 Hz
Efficiency 0.85 Terminal Type Screw
Dimensions 52.6 mm L x 54 mm W x 90 mm H Mounting Type 35 mm DIN Rail
Temperature Rating -20 to 70 °C Standards cULus Listed, EN 60950-1 and EN 50178, UL 508, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, UL File Number E151273, NEC Class 2, ATEX (EX) II 3G Ex nA IIC T3, ANSI/ISA-12.12.01-2007, Class I, Div. 2, Group ABCD, T4
Application Power supply LOGO!Power UPC 040892600254
