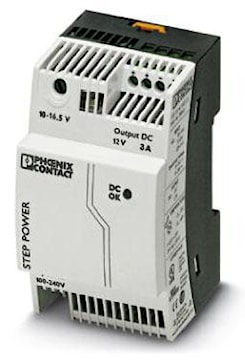

PHOENIX 2868570 DC Power Supply Primary Switched STEP Power 100 - 240 VAC Input, 12 VDC Output, 3 A,

Price $184.52 / EA
Unavailable for order
Manufacturer #:2868570


Base unit NLC-055-100A-08I-04QRA-05A. Screw connection. NanoNavigator 3 or above programming tool. Digital input and relay output. DIN rail mounting. STEP POWER supplies for installation distributors. The STEP POWER supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface. Flexible mounting by simply snapping onto the DIN rail or screwing onto a level surface. Reliable power supply high MTBF (mean time between failures) of more than 500000 hours and U/I characteristic curve. Energy savings maximum energy efficiency and incredibly low idling losses.


Brand Name Phoenix Item Name DC Power Supply
Type Primary Switched STEP Power Input Voltage 100 - 240 VAC
Output Voltage 12 VDC Amperage Rating 3 A
Frequency Rating 45 - 65 Hz Efficiency 85
Terminal Type Screw Dimensions 54 mm W x 61 mm D x 90 mm H
Mounting Type DIN Rail Temperature Rating -25 to 70 °C Ambient
Standards cULus, CB, DNV, GL, GOST Listed
