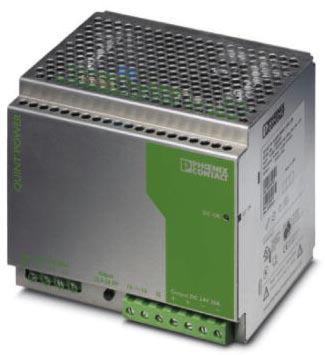

PHOENIX 2938727 DC Power Supply Primary Switched QUINT Power 400 - 500 VAC Input, 24 VDC Output, 20 A,
pho2938727
PHOENIX 2938727 DC Power Supply Primary Switched QUINT Power 400 - 500 VAC Input, 24 VDC Output, 20 A,
Price
$2,284.04
/ EA
Inventory
Unavailable for order
Manufacturer:PHOENIX
Manufacturer #:2938727
Description
Power supply unit QUINT. With its wide-range input, single and three-phase versions. Horizontal DIN rail NS 35, EN 60715 mounting position. Screw connection method, 10 to 24 AWG.
Specifications
| Brand Name | Phoenix | Item Name | DC Power Supply |
| Type | Primary Switched QUINT Power | Input Voltage | 400 - 500 VAC |
| Output Voltage | 24 VDC | Power Rating | 480 W |
| Amperage Rating | 20 A | Frequency Rating | 45 - 65 Hz |
| Efficiency | > 91 | Terminal Type | Screw |
| Dimensions | 160 mm W x 135 mm D x 130 mm H | Mounting Type | DIN Rail |
| Temperature Rating | -25 to 70 °C Ambient | Standards | cULus, CB, DNV, GL, GOST Listed |
