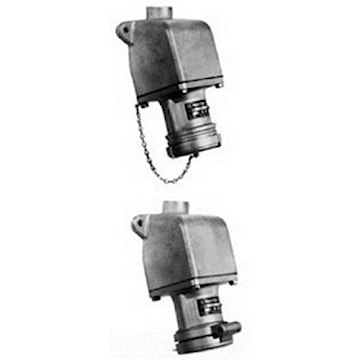

EGS ADRE304475 POWERTITE REC.30A 600V 4P 4W
appadre304475
EGS ADRE304475 POWERTITE REC.30A 600V 4P 4W
Price
$431.30
/ EA
Inventory
Unavailable for order
Manufacturer:EGS
Manufacturer #:ADRE304475
Description
Powertite Grounding Style 1 Receptacle With AEE Mounting Box, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC,
Specifications
| Brand Name | Appleton Group | Sub Brand | Powertite |
| Type | Grounding Style 1 Receptacle With AEE Mounting Box | Voltage Rating | 600//250 VAC//VDC |
| Amperage Rating | 30 A | Number of Poles | 4 Pole |
| Number of Wires | 4 | NEMA Rating | NEMA 3, 3R, 4, 4X |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum | Phase | 3 |
| Temperature Rating | -40 to 107 C | Standards | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Application | For ACP3044BC Metallic Clamping Ring Plug | UPC | 781381158541 |
Packages
| 1 - rarr_unit_1 | ea - ea |
