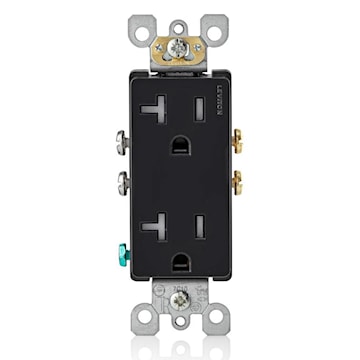

LEVITON T5825-E Decora® Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R Black

Price $5.41 / EA
Available for delivery
Available for pick up at Ajax
Qty EA
Manufacturer #:T5825-E


Levitons tamper-resistant Decora duplex receptacle are designed for a chic appearance, quick installation and durability. The impact-resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings. It also coordinates beautifully with Leviton's complete line of Decora devices.


Brand Name Leviton Sub Brand Decora®
Item Name Straight Blade Duplex Receptacle Type Tamper-Resistant
Size 4.2 H x 1.351 W x 1.184 D IN Voltage Rating 125 V
Amperage Rating 20 A Number of Poles 2
Number of Wires 3 Connection Type Quickwire Push-In and Side Wired
NEMA Rating 5-20R Conductor Size 14 AWG
Material Thermoplastic Color Black
Finish Matte Terminal Connection Screw
Dimensions 34.32 mm W x 30.07 mm D x 106.68 mm H Mounting Type Wallplate, Flush, Screw
Temperature Rating -40 to 60 °C Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Standards UL Listed, CSA File Number 152105, NOM Certified, NEMA Rated Application Commercial use
UPC 078477450512
