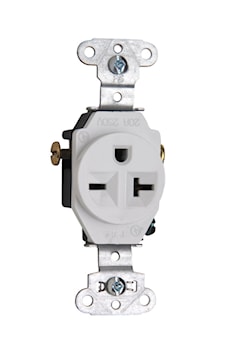

LEGRAND 5851W Pass & Seymour Straight Blade Receptacle Straight Blade Single Receptacle 20 A, 6-20R White
pas5851w
LEGRAND 5851W Pass & Seymour Straight Blade Receptacle Straight Blade Single Receptacle 20 A, 6-20R White
Price
$21.29
/ EA
Inventory
Available for delivery
Available for pick up at
Ajax
Manufacturer:LEGRAND
Manufacturer #:5851W
Description
Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volts, • Auto-ground clip assures positive ground. , • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. , • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. , • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. , • One-piece brass triple-wire power contacts for lasting retention.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Single Receptacle | Type | Non-Reversing |
| Grade | Residential/Commercial | Size | 3.3 in |
| Voltage Rating | 250 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Wire Ground, Side Wire | NEMA Rating | 6-20R |
| Conductor Size | 4 AWG | Material | Thermoplastic |
| Color | White | Finish | Untreated, Gloss |
| Frequency Rating | 50/60 Hz | Terminal Connection | Screw |
| Dimensions | 33.528 mm W x 27.432 mm D x 83.312 mm H | Mounting Type | Wall, Flush |
| Standards | UL 498 | Application | Commercial,Residential |
| UPC | 785007585124 |
Packages
| 1 - rarr_unit_1 | EA - EA | 10 - 10 | 100 - rarr_unit_2 |
