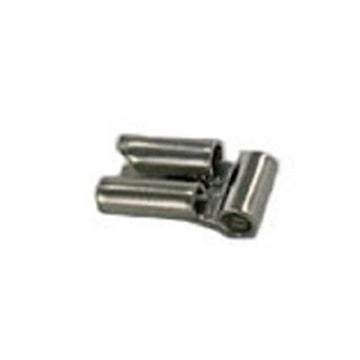

TECHSPAN FLFR9B250 Non Insulated Female Flag Disconnect Terminal High Temperature, Type 9 16-14 AWG Steel

Inventory
Unavailable for order
Manufacturer:TECHSPAN
Manufacturer #:FLFR9B250

Description

One piece, steel construction, nickel plated for protection. Capable of providing reliable circuitry in temperature ranges up to 900 degrees Fahrenheit. Structural features of all Type 9 terminals are identical to the Type 1, which proves that they will provide the highest quality connection.

Specifications

Brand Name Techspan Item Name Non Insulated Female Flag Disconnect Terminal
Type High Temperature, Type 9 Conductor Size 16-14 AWG
Tab Size 1/4 x 0.032 in Width 0.3 in
Voltage Rating 600 V Material Steel
Finish Nickel Plated Length 0.65 in
Barrel Type Butted Seam Temperature Rating 900 °F
For Use With Copper Stranded Wire Only Standards RoHS Compliant
UPC 776856148745
