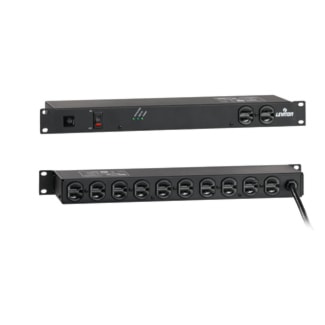

LEVITON 5500-190 Surge Protective Power Distribution Unit Staged-Multi Component Series 15 A, 120 VAC Input, 330 V Clamping, NEMA 5-15P
lev5500190
LEVITON 5500-190 Surge Protective Power Distribution Unit Staged-Multi Component Series 15 A, 120 VAC Input, 330 V Clamping, NEMA 5-15P
Price
$350.22
/ EA
Inventory
Unavailable for order
Manufacturer:LEVITON
Manufacturer #:5500-190
Description
NOISE AND SURGE PROTECTED, SWITCHED, STRAIGHT BLADE DUPLEX RECEPTACLE OUTLET, 6 OUTLET(S), ELECTRICAL RATING 125 V 15 AMPERE 50/60 HZ, 12 FT CORD, SURGE PROTECTED, 640 J, 52 KILOAMPERE SURGE RATING, SIZE 19 INCH L X 1.71 INCH W X 4.55 INCH D, APPLICATION COMMERCIAL, APPROVAL UL 1449, CSA, LEVITON[R] BRAND, MOUNTING TYPE 19 INCH RACK, INCLUDES CIRCUIT BREAKER, NEMA 5-15P STRAIGHT BLADE PLUG, ON/OFF ROCKER SWITCH
Specifications
| Brand Name | Leviton | Sub Brand | PDUS |
| Item Name | Surge Protective Power Distribution Unit | Type | Staged-Multi Component Series |
| Voltage Rating | 120 VAC Input, 330 V Clamping | Amperage Rating | 15 A |
| NEMA Configuration | NEMA 5-15P | Cord Length | 12 ft |
| Frequency Rating | 50/60 Hz | Receptacle Type | NEMA 5-15R |
| Surge Rating | 72 kA | Material | Steel |
| Finish | Painted | Dimensions | 19 in L x 4.55 in W x 1-3/4 in H |
| Mounting | 19 in Rack | Temperature Rating | -10 to 60 °C Operating, -35 to 60 °C |
| Environmental Conditions | Storage Temperature (-35 To +60 DEG C) | Standards | UL 1363 Relocatable Power Taps, UL Listed Component (E118936), ANSI/UL 1449 Surge Protective Devices, UL Listed Component, Type 4 SPD Evaluated for use in Type 3 Applications (E317603) |
| Application | Rack-Mounted Electronic Equipments | UPC | 078477868157 |
