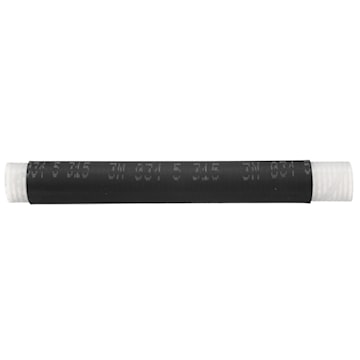

3M CANADA 8426-11 Cold Shrinkable Splice Thick Wall 2:1, 4.06 mm Wall 11 in L Black
mmm842611
3M CANADA 8426-11 Cold Shrinkable Splice Thick Wall 2:1, 4.06 mm Wall 11 in L Black
Price
$81.26
/ EA
Inventory
Available for delivery
Unavailable for pick up
Ajax
Manufacturer:3M CANADA
Manufacturer #:8426-11
Description
3M™ Cold shrink tubes are designed using a unique cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwind) after positioning allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.
Specifications
| Brand Name | 3M | Item Name | Cold Shrinkable Splice |
| Type | Thick Wall | Voltage Rating | 1 kV |
| Conductor Size | 2/0 AWG, 250 kcmil, 3/0 AWG, 4/0 AWG | Shrink Ratio | 2:1 |
| Expandable Inner Diameter | 30.1 mm | Recovered Inner Diameter | 13.9 mm |
| Overall Length | 11 in | Material | EPDM Rubber |
| Color | Black | Wall Thickness | 4.06 mm |
| Temperature Rating | 0 - 80 °C | For Use With | Aluminum, Copper Conductors |
| Application | For Power Cables | UPC | 054007344582 |
Packages
| 10 - 10 |
