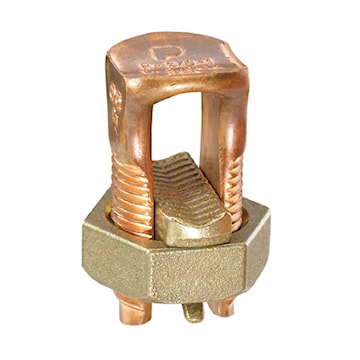

PANDUIT SBC3/0-Q Pan-Lug™ Split Bolt Connector Type SBC, Extra Long Body 1-3/0 AWG Stranded Copper
pccsbc3/0-q
PANDUIT SBC3/0-Q Pan-Lug™ Split Bolt Connector Type SBC, Extra Long Body 1-3/0 AWG Stranded Copper
Price
$34.7235
/ EA
Inventory
Unavailable for order
Manufacturer:PANDUIT
Manufacturer #:SBC3/0-Q
Description
Pan-Lug™ Split bolt. Copper conductor range 1 to 3/0 AWG. Type SBC mechanical connector. Copper to copper connection. High strength copper for corrosion resistance, extra long body, range taking, true hexagonal design for correct fit.
Specifications
| NA_TAX_Brand_Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Split Bolt Connector | Type | Type SBC, Extra Long Body |
| Main Conductor Size | 1-3/0 AWG Stranded | Nut Size | 1.24 in |
| Voltage Rating | 600 V | Material | Copper |
| Tap Conductor Size | 1-3/0 AWG Stranded | Conductor Type | Copper |
| Inner Diameter | 0.53 in | Overall Length | 2.07 in |
| Finish | Unplated | Tightening Torque | 500 in-lb |
| Standards | UL Listed, CSA C22.2 No. 65-13, RoHS Compliant | UPC | 074983627271 |
Packages
| 1 - rarr_unit_1 | 25 - 25 | 100 - rarr_unit_2 |
