ils2acc4/0

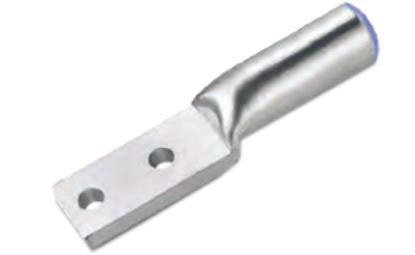

ILSCO 2ACC-4/0 Compression Connector Lug 2 Holes 6061-T6 Aluminum Alloy 4/0 AWG Strand 1/2 in Stud size
ils2acc4/0
ILSCO 2ACC-4/0 Compression Connector Lug 2 Holes 6061-T6 Aluminum Alloy 4/0 AWG Strand 1/2 in Stud size
Price
$3.83
/ EA
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:ILSCO
Manufacturer #:2ACC-4/0
Description
Manufactured from high strength 6061-T6 aluminum alloy. Electro-tin plated. Chamferred barrel. Prelled with DE-OX. Color coded end cap inserted in end. Rated for 600 V, 90 °C.
Specifications
| Brand Name | Ilsco | Item Name | Compression Connector Lug |
| Conductor Size | 4/0 AWG Strand | Number of Holes | 2 |
| Stud Size | 1/2 in | Tongue Size | 3-1/8 in L x 1.19 in W |
| Overall Length | 5.58 in | Material | 6061-T6 Aluminum Alloy |
| Voltage Rating | 600 V | Barrel Type | Chamfered |
| Die Code | 24 | Finish | Electro-Tin Plated |
| Temperature Rating | 90 °C | Standards | CSA Certified |
| UPC | 783669997040 |
Packages
| 1 - rarr_unit_1 | 25 - rarr_unit_2 |
