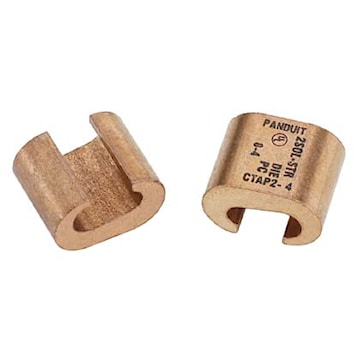

PANDUIT CTAP2/0-2/0-X StructuredGround™ Compression C-Tap Connector Type CTAP, Heavy Duty 1/0-2/0 AWG Stranded

Inventory
Available for backorder
Unavailable for pick up Ajax
Qty EA
Manufacturer:PANDUIT
Manufacturer #:CTAP2/0-2/0-X
Documents Documents

Description

C-Type copper compression tap. Code conductor, heavy duty, CTAP type. 1/0 to 2/0 AWG run and tap copper conductor size. For tapping into unbroken continuous main, as a wire joint or two-way splice. Wide wire range-taking capability minimizes inventory requirement. Made from heavy wall, extruded, high conductivity copper, provides high strength and premium electrical properties. use up to 35 kV and 90° C temperature rate. For use with solid and stranded copper code conductors.

Specifications

Brand Name Panduit Sub Brand StructuredGround™
Item Name Compression C-Tap Connector Type Type CTAP, Heavy Duty
Voltage Rating Up to 35 kV Run Conductor Size 1/0-2/0 AWG Stranded
Tap Conductor Size 1/0-2/0 AWG Stranded Color Code Copper
Die Index Number PO Strip Length 1-1/16 in
Material High Conductivity Copper Length 0.8 in
Width 0.93 in Height 1.37 in
Temperature Rating 90 °C For Use With AWG Wire
Standards UL, cULus Listed, RoHS Compliant Application For Direct Burial in Earth and Concrete, use with Solid and Stranded Copper Code Conductors
UPC 074983821310

Packages

1 - rarr_unit_1 100 - rarr_unit_2
