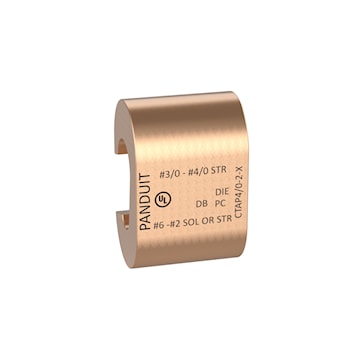

PANDUIT CTAP4/0-2-X StructuredGround™ Compression C-Tap Connector Type CTAP, Heavy Duty 6-2 AWG Solid/Stranded
pccctap4/0-2-x
PANDUIT CTAP4/0-2-X StructuredGround™ Compression C-Tap Connector Type CTAP, Heavy Duty 6-2 AWG Solid/Stranded
Inventory
Available for backorder
Unavailable for pick up
Ajax
Manufacturer:PANDUIT
Manufacturer #:CTAP4/0-2-X
Description
C-Type copper compression tap. Code conductor, heavy duty, CTAP type. 3/0 to 4/0 AWG run, 6 to 2 AWG tap copper conductor size. For tapping into unbroken continuous main, as a wire joint or two-way splice. Wide wire range-taking capability minimizes inventory requirement. Made from heavy wall, extruded, high conductivity copper, provides high strength and premium electrical properties. use up to 35 kV and 90° C temperature rate. For use with solid and stranded copper code conductors.
Specifications
| Brand Name | Panduit | Sub Brand | StructuredGround™ |
| Item Name | Compression C-Tap Connector | Type | Type CTAP, Heavy Duty |
| Voltage Rating | Up to 35 kV | Run Conductor Size | 3/0-4/0 AWG Stranded |
| Tap Conductor Size | 6-2 AWG Solid/Stranded | Color Code | Copper |
| Die Index Number | PD3 | Strip Length | 1-1/4 in |
| Material | High Conductivity Copper | Length | 0.94 in |
| Width | 1.08 in | Height | 1.66 in |
| Temperature Rating | 90 °C | For Use With | AWG Wire |
| Standards | UL, cULus Listed, RoHS Compliant | Application | For Direct Burial in Earth and Concrete, use with Solid and Stranded Copper Code Conductors |
| UPC | 074983839506 |
Packages
| 1 - rarr_unit_1 | 100 - rarr_unit_2 |
