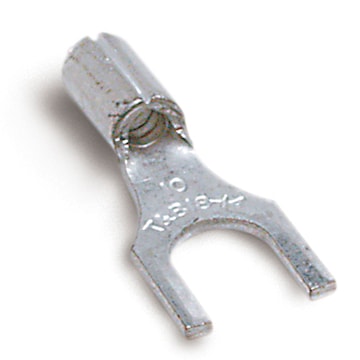

ABB INS C10-10F Sta-Kon® Non Insulated Fork Terminal Long Sleeve 12-10 AWG #10 Stud size
tnbc1010f
ABB INS C10-10F Sta-Kon® Non Insulated Fork Terminal Long Sleeve 12-10 AWG #10 Stud size
Inventory
Unavailable for order
Manufacturer:ABB INS
Manufacturer #:C10-10F
Description
Sta-Kon® non-insulated locking fork terminal with 18-14 AWG wire range and #10 size bolt is used. Made of electrolytic copper for high conductivity with electro-tin plated. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Specifications
| Brand Name | ABB | Sub Brand | Sta-Kon® |
| Item Name | Non Insulated Fork Terminal | Type | Long Sleeve |
| Conductor Size | 12-10 AWG | Stud Size | #10 |
| Voltage Rating | 600 V | Material | Copper |
| Finish | Electro Tin-Plated | Color | Metallic |
| Barrel Type | Serrated | Temperature Rating | 150 degrees C |
| Standards | UL File Number E9809 | UPC | 786210803487 |
Packages
| 1 - rarr_unit_1 | C - C | 250 - rarr_unit_2 |
