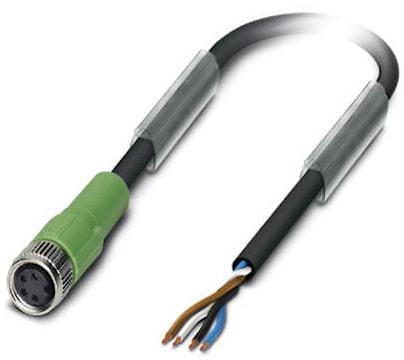

PHOENIX 1681868 4-Position Sensor Cable 24 AWG M8 Straight RAL 7021 Black Gray 5 m L
pho1681868
PHOENIX 1681868 4-Position Sensor Cable 24 AWG M8 Straight RAL 7021 Black Gray 5 m L
Price
$21.39
/ EA
Inventory
Unavailable for order
Manufacturer:PHOENIX
Manufacturer #:1681868
Description
Sensor/actuator cable. 4-position. PUR halogen-free. black/grey, RAL 7021 external sheath. Free cable end, on socket straight M8. CuSn contact. Ni/Au contact surface. Ambient temperature -25 to 90°C (plug or socket).
Specifications
| Brand Name | Phoenix | Item Name | Sensor Cable |
| Type | 4-Position | Voltage Rating | 48 VAC, 60 VDC |
| Cable Length | 5 m | Connector Type | M8 Straight |
| Material | Bare Copper Conductor | Amperage Rating | 4 A |
| Cable Diameter | 3.95 +/- 0.15 mm | Cable Material | Polyurethane |
| Number of Conductors | 4 | Wire Gauge | 24 AWG |
| Bend Radius | 44 mm | Housing Material | Polyurethane |
| Color | RAL 7021 Black Gray | Degree of Protection | IP65, IP67, IP68 |
| Temperature Rating | -25 to 90 °C | Standards | UL Listed, IEC 61076-2-101, RoHS Compliant |
