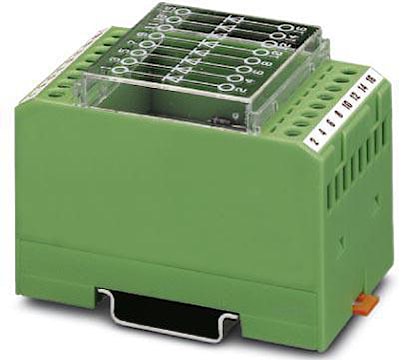

Diode block EMG-45-DIO-8E. With 8-diodes, individually wired. Diode type 1N 4007. Conducting state current per diode 0.7 A. Screw connection method with M3 thread. Spark-suppression diodes for limiting surge voltages of inductive loads. Electrical decoupling of messages in fault reporting systems.
pho2950103
PHOENIX 2950103 DIODE MODULE0
Price
$123.2100
/ EA
Inventory
Available for backorder
Unavailable for pick up
Oshawa
Manufacturer:PHOENIX
Manufacturer #:2950103
Description
Specifications
| Brand Name | Phoenix | Item Name | Diode Module with 8 Diodes |
| Type | Standard | Forward Voltage | 250 VAC |
| Reverse Current | 5 µA | Reverse Voltage | 1300 V |
| Forward Current | 0.7 A Single Load, 0.5 A Simultaneous Load | Mounting | Screw, DIN Rail |
| Reverse Leakage Current | 5 µA at 1300 V | Operating Temperature | -20 to 50 °C |
| Dimensions | 45 mm W x 55 mm D x 75 mm H | Standards | UL, cUL Listed, GOST, CE |
| Application | For Limiting Surge Voltages of Inductive Loads |
