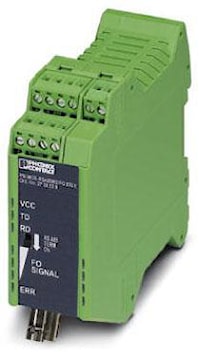

PHOENIX 2708339 Fiber Optic Converter 60 VDC/42 VAC

Price $2,520.00 / EA
Unavailable for order
Manufacturer #:2708339


FO converters PSI-MOS-RS485W2/FO-850-E. With integrated optical diagnosis. Alarm contact, for RS-485 2-wire bus systems SUCONET K, modbus, NRZ coding. Terminal equipment with an FO interface, for HCS/fiber glass cable. Can be combined with the PSI copper repeater in a modular way using DIN rail connectors. Connections can be plugged in using a COMBICON screw terminal block. Supply voltage and data signals routed through via DIN rail connectors. Automatic data rate detection or fixed data rate setting via DIP switches. Redundant power supply possible by means of optional system power supply unit. Approved for use in zone-2. Intrinsically safe fiber optic interface for direct connection to devices in zone-1. Integrated optical diagnostics for continuous monitoring of fiber optic paths. Floating switch contact for leading alarm generation in relation to critical fiber optic paths. Suitable for data rates up to 500 kbps.


Brand Name Phoenix Item Name Fiber Optic Converter
Output Type Relay Input Voltage 24 VDC
Output Voltage 60 VDC/42 VAC Input Current 130 mA
Output Current 0.46 A Connection Type Pluggable Screw
Mounting Type DIN Rail Temperature Rating -20 to 60 °C
Specifications RS-485 Interface Material Polyamide 6.6
Color Green Dimensions 35 mm W x 105 mm D x 99 mm H
Standards UL Listed, CE Certified, cUL Listed, ATEX Certified, REACH SVHC Lead 7439-92-1, China RoHS Compliant
