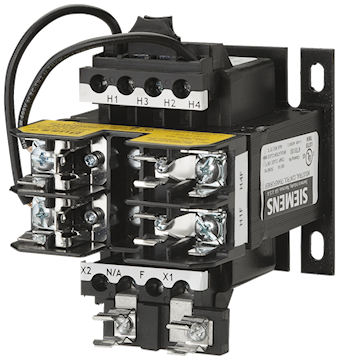

SIEMENS MT0100E Control Power Transformer 100 VA 1 PH, 550/575/600 VAC, Open

Price $132.88 / EA
Unavailable for order
Manufacturer #:MT0100E
Documents Documents


Industrial control power transformer with epoxy-encapsulated (50-5000 VA) completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments. Integrally molded barriers between terminals and transformer, protect against electrical creepage. Up to 30% greater terminal contact area permits low-loss connections. Extra-deep barriers reduce the chance of shorts from frayed leads or careless wiring.


Brand Name Siemens Item Name Control Power Transformer
Primary Voltage 550/575/600 VAC Secondary Voltage 110/115/120 VAC
VA Rating 100 VA Frequency Rating 50/60 Hz
Phase 1 Connection Type Screw
Dimensions 3.31 in W x 4.11 in D x 3.46 in H Enclosure Type Open
Mounting Type Surface Temperature Rating -20 to 40 °C
Standards UL Listed, CSA Certified Application For Domestic Use
UPC 754554026848


1 - rarr_unit_1 ea - ea
