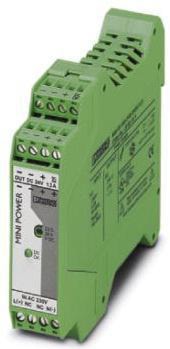

PHOENIX 2866446 DC Power Supply Primary Switched Mini Power 100 - 240 VAC Input, 24 VDC Output, 1.3 A,
pho2866446
PHOENIX 2866446 DC Power Supply Primary Switched Mini Power 100 - 240 VAC Input, 24 VDC Output, 1.3 A,
Price
$250.74
/ EA
Inventory
Unavailable for order
Manufacturer:PHOENIX
Manufacturer #:2866446
Description
Primary-switched MINI POWER supply for DIN rail mounting. MINI POWER supplies for MCR technology. In measurement and control technology (MCR), modular electronics housing has become the industry standard. MINI POWER is the power supply unit to go with it. The devices are flexible. Easy-maintenance connection technology of keyed COMBICON connectors. Remote monitoring of output voltage via switching output.
Specifications
| Brand Name | Phoenix | Item Name | DC Power Supply |
| Type | Primary Switched Mini Power | Input Voltage | 100 - 240 VAC |
| Output Voltage | 24 VDC | Power Rating | 31.2 W Output |
| Amperage Rating | 1.3 A | Frequency Rating | 45 - 65 Hz |
| Efficiency | 85 | Terminal Type | Screw |
| Dimensions | 22.5 mm W x 107 mm D x 99 mm H | Mounting Type | DIN Rail |
| Temperature Rating | -25 to 70 °C Ambient | Standards | cULus, CB, DNV, GL, GOST Listed |
