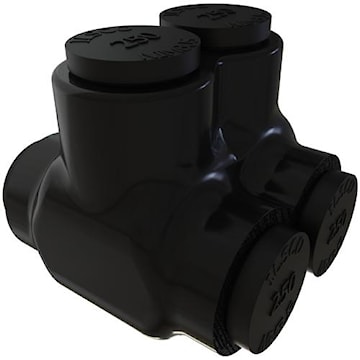

ILSCO PBTD-2-250 Nimbus Multi-Tap Connector INS BLK TWO SIDE TAP: PBTD 2 Ports 250 kcmil - 6 AWG Aluminum

Available for backorder
Unavailable for pick up Ajax
Manufacturer #:PBTD-2-250


Insulated multi-tap connector. Dual rated for copper or aluminium conductor. High dielectric strength plastisol chemical resistant. Black cover UV rated. Removable plugs entry port closure. Prefilled with De-ox® prevents oxides from forming. 250 KCMIL to 6 AWG wire range flexibility in the field. Cold temperature rated to -45°C variability application. UL listed and CSA certified for 600 V, 90°C ensures reliability.


Brand Name Ilsco Sub Brand Nimbus®
Item Name Multi-Tap Connector Type Two Side, PBTD, Insulated
Voltage Rating 600 V Number of Ports 2
Number of Conductors 2 Conductor Size 250 kcmil - 6 AWG
Material AL/CU Color/Finish Black
Conductor Type Stranded Connection Type Mechanical
Stud Size 5/16 in Dimensions 2.17 in L x 2 in W x 2.17 in H
Temperature Rating -45 to 90 °C Standards UL 486A-B, UL File Number E6207, CSA File Number LR29601
Application Connecting Tap UPC 783669077889
