burqa26b

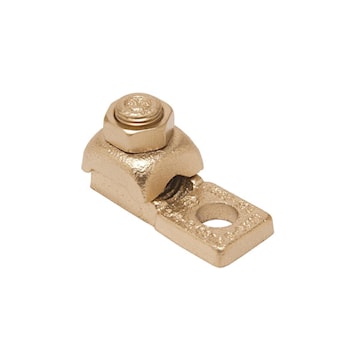

BURNDY QA26B QIKLUG Mechanical Lug 1/0-2/0 AWG High Copper Alloy Body

Not available for order
Price $61.5000 / EA
Manufacturer:BURNDY
Manufacturer #:QA26B

Description

Copper Terminal, Heavy Duty, 1 Hole, 1/0-2/0 AWG (Str), 3/8" Stud, 1 Screw

Specifications

Brand Name Burndy Sub Brand Qiklug™
Item Name Mechanical Lug Type QA, Heavy Duty, Compact
Conductor Type Commercial Stranded Copper (Run), Copper (Navy) Conductor Size 1/0-2/0 AWG
Number of Bolt Holes 1 Material High Copper Alloy
Number of Conductors 1 Bolt Size 3/8 in
Tongue Size 1 in L x 13/16 in W x 7/32 in T Temperature Rating 194
Dimensions 2 in L x 13/16 in W x 1-3/16 in H Standards UL Listed, RoHS Complaint
Application For Joining a Wide Range of Copper Cable to Equipment Pads or Bar UPC 781810314128

Packages

3 - 3 C - C
