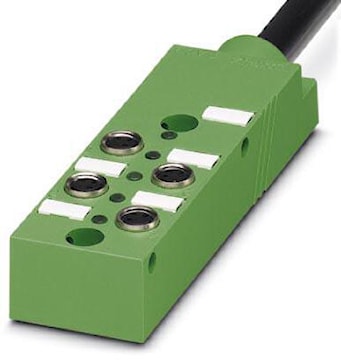

PHOENIX 1516014 Sensor/Actuator Box 102 mm L x 30 mm W x 20 mm H

Price $142.36 / EA
Unavailable for order
Manufacturer #:1516014


Sensor/actuator box SACB- 4/3-L- 5,0 PUR-M8. 4 x 0.34 (signal line) and 2 x 0.75 (power line) mm² cross section. Fixed connection. Black colour. PBT housing, powder-coated, Nickel or gold surface, NBR O-ring material. 5 m cable. IP65 or IP67 degree of protection. Operating temperature -30 to 80°C. Safety in the field, molded housing and high degree of protection. Flexible, distributed bundling of signals in one master cable. Convenient: increased machine availability. Quick and easy diagnostics.


Brand Name Phoenix Item Name Sensor/Actuator Box
Size 5 m Cable L Material PBT Housing, CuSn Contact
Voltage Rating 30 VDC Amperage Rating 6 A
Dimensions 102 mm L x 30 mm W x 20 mm H Standards IEC 61076-2-104, UL Listed, EAC, cULus Listed
